Modern hardware 35mm 165 degrees clip on hinge M31313

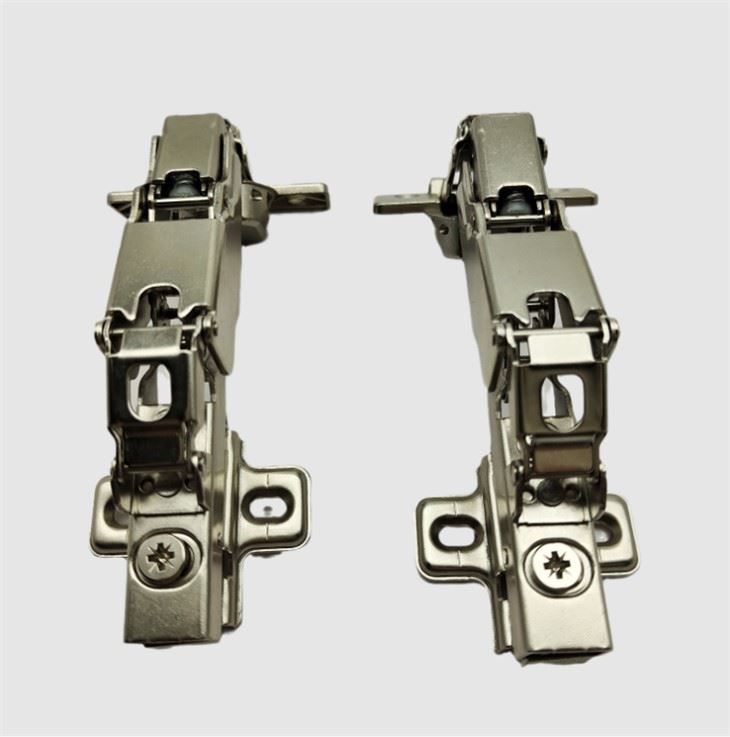

M31313 is a clip on 165degree hinges.
We make the hinges by Q195 material. We have different sizes of C=0, C=8, C=15. Plate size: H0, H2. Plate can be two hole or four hole according to customer’s request. Cup hole distance: 48*6.0mm; 45*9.5mm, 52*5.5mm.
Clip on 165 degree hinge is with the same application as slide-on 165degree hinges. It can be used on big angle opening door. And also can be used together with pie-corner hinges(135degree hinges) on lazy susan corner cabinet. The only difference is this is clip on type, just press the plate, then it can be mounted, and push the clip-on fittings, it can be dismantled. Very simple and easy, could save the workers time.
Clip on 165 degree hinges are widely used on East Europe, South America and middle east market.
The package is usually 50 or 100pcs per carton.
Product Description
|
Product Name |
165 degree clip on hinge |
|
Feature |
35mm 165 degree clip on hinge |
|
Item NO. |
M31313 |
|
Life test |
50000 times |
|
Material |
Cold rolled steel |
|
Open angle |
165° |
|
Diameter |
35 mm |
|
Dimension |
3-7mm |
|
Depth of hinge cup |
11.3mm |
|
Range for door thickness |
14-25mm |
|
Place of Origin |
Guangdong, China |
|
Sample |
For free |
|
Trade Term |
FOB/EXW |
